Description

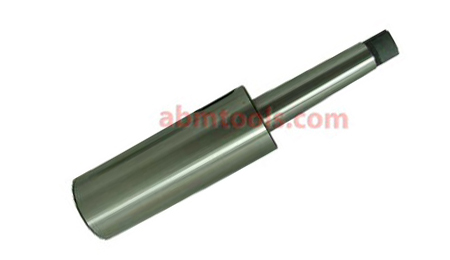

Extension Drill Sleeves / Morse Taper Extension Sockets are designed to adapt Morse Taper Shank tools to larger or smaller Morse Taper Holder. They can also be used to extend the length of taper shank tools. Also known as a Fitted Socket.
• Hardened And Ground Internally And Externally.
• Extension Drill sleeve/ Extension sockets used when hole in spindle of drill press to small for taper shank of drill.
• As per DIN 2187 .
• Also known as Extension Socket or Fitted Socket
| Item Code No. | Morse Taper No. Outside | Morse Taper No. Inside | Overall Length |
|---|---|---|---|
| ABM-IMT-4100 | 1 | 1 | 145 |
| ABM-IMT-4101 | 2 | 1 | 160 |
| ABM-IMT-4102 | 3 | 1 | 175 |
| ABM-IMT-4103 | 4 | 1 | 200 |
| ABM-IMT-4104 | 5 | 1 | 232 |
| ABM-IMT-4105 | 1 | 2 | 160 |
| ABM-IMT-4106 | 2 | 2 | 175 |
| ABM-IMT-4107 | 3 | 2 | 194 |
| ABM-IMT-4108 | 4 | 2 | 215 |
| ABM-IMT-4109 | 5 | 2 | 247 |
| ABM-IMT-4110 | 2 | 3 | 196 |
| ABM-IMT-4111 | 3 | 3 | 215 |
| ABM-IMT-4112 | 4 | 3 | 240 |
| ABM-IMT-4113 | 5 | 3 | 268 |
| ABM-IMT-4114 | 2 | 4 | 215 |
| ABM-IMT-4115 | 3 | 4 | 240 |
| ABM-IMT-4116 | 4 | 4 | 265 |
| ABM-IMT-4117 | 5 | 4 | 300 |
| ABM-IMT-4118 | 6 | 4 | 355 |
| ABM-IMT-4119 | 3 | 5 | 268 |
| ABM-IMT-4120 | 4 | 5 | 300 |
| ABM-IMT-4121 | 5 | 5 | 335 |
| ABM-IMT-4122 | 6 | 5 | 390 |
| ABM-IMT-4123 | 6 | 6 | 470 |
