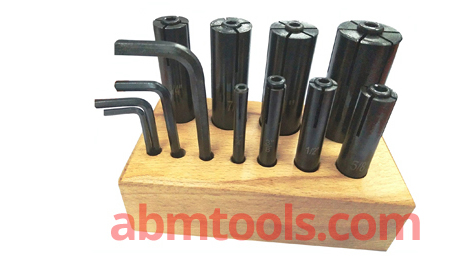

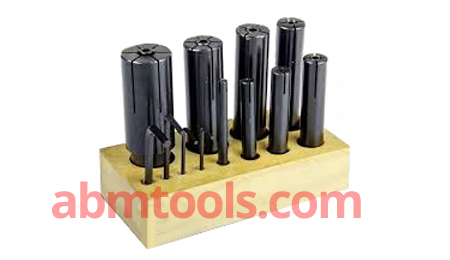

An expanding screw widens the end of the mandrel for a tight hold on the inside of a workpiece. These mandrels are machinable to fit the exact ID of your part. Mandrels are also known as arbors.

Loading...

Description

Also known as Expanding-End Lathe Mandrel Sets
• Chuck the shank of the expanding mandrel in a collet, jaw chuck, or fixture.
• With an Allen Key tighten the hex draw bolt until it expands.
• Then machine the slotted Part larger than bore of part.
• Loosen hex draw bolt, position part, tighten draw screw. The part is now chucked and ready for machining.
• This expanding mandrel can be used with standard collets, vises, jaw chucks and many other special fixtures.
• These expanding mandrels are machinable by the customer.
• Multiple expanding mandrels are also used in other special fixtures for holding multiple workpieces ‘side by side’.



Item Code No.Included Size
ABM-IMT-82876, 10, 12, 16, 19, 22, 25 & 32 mm
ABM-IMT-82881/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/4"
