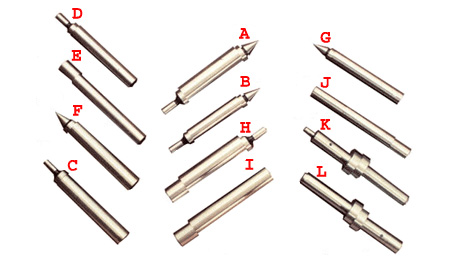

Description
• Hardened all over and ground on all working surfaces.
• Edge Finder Works Well on Round or Straight Surfaces.
• The center finder will pick up cross lines to Machine Drill or Bore Holes to a layout.
• To Locate working edges like shoulders, centering points and scribed lines easily & accurately.
• Time saving positioning tool for Jig Borers and other machines.
• Available in inches and mm.
• Useful inspection tool for fast & efficient dimensional inspection on production parts.
IMPERIAL / INCHES
| Item Code No. IMPERIAL / Inch | Picture | Shank Dia. | Tip Dia. | Type |
|---|---|---|---|---|
| ABM-EPT-8765 |  | 1/2" | .2000" | Combination Edge & Center Finder |
| ABM-EPT-8766 | | 1/2" | .5000" | Combination Edge & Center Finder |
| ABM-EPT-8767 |  | 3/8" | .2000" | Combination Edge & Center Finder |
| ABM-EPT-8768 | | 3/8" | .375" | Combination Edge & Center Finder |
| ABM-EPT-8769 |  | 3/8" | .375" | Center Finder Single End |
| ABM-EPT-8770 |  | 1/2" | .5000" | Center Finder Single End |
| ABM-EPT-8771 |  | 1/2" | .5000" | Plain Edge Finder Single End |
| ABM-EPT-8772 |  | 1/2" | .2000" | Edge Finder Double End |
| ABM-EPT-8773 |  | 3/8" | .2000" | Edge Finder Single End |
| ABM-EPT-8774 | | 1/2" | .2000" | Edge Finder Single End |
| ABM-EPT-8775 | | 0.500" | 0.500" | Plain Edge Finder |
| ABM-EPT-8776 | | 0.500" | 0.200" | Double Edge Finder |
| ABM-EPT-8777 | | 0.500" | 0.200" | Combination Edge & Center Finder |
| ABM-EPT-8778 | | 0.375" | 0.200" | Combination Edge & Center Finder |
| ABM-EPT-8779 | | 0.375" | 0.200" | Edge Finder |
| ABM-EPT-8780 | | 0.500" | 0.200" | Edge Finder |
METRIC
| Item Code No. Metric | Picture | Shank Dia. | Tip Dia. | Type |
|---|---|---|---|---|
| ABM-EPT-8785 | | 10 mm | 10 mm | Plain Edge Finder Single End |
| ABM-EPT-8786 | | 12 mm | 5 mm | Edge Finder Single End |
| ABM-EPT-8787 | | 10 mm | 4 mm | Combination Edge & Center Finder |
| ABM-EPT-8788 | | 12 mm | 4 mm | Edge Finder Single End |
| ABM-EPT-8789 | | 12 mm | 4 mm | Edge Finder Double Ended |
| ABM-EPT-8790 | | 10 mm | 4 mm | Edge Finder Single Ended |
| ABM-EPT-8791 | | 12 mm | 12 mm | Plain Edge Finder |
| ABM-EPT-8792 | | 12 mm | 4 mm | Edge Finder Single End |
| ABM-EPT-8793 | | 12 mm | 5 mm | Combination Edge & Center Finder |
| ABM-EPT-8794 | | 9 mm | 5 mm | Combination Edge & Center Finder |
| ABM-EPT-8795 |  | 9 mm | -- | Edge Finder |
| ABM-EPT-8796 | | 12 mm | -- | Center Finder |
| ABM-EPT-8797 | | 9 mm | -- | Center Finder |
| ABM-EPT-8798 | | 12 mm | 5 mm | Double Edge Finder |
| ABM-EPT-8799 |  | 9 mm | -- | Stepped Shank Edge Finder |
| ABM-EPT-8800 |  | 10 mm | 4 mm | Edge Finder Metric Z Type Edge Finder |
| ABM-EPT-8801 |  | 10mm | 10 mm | Edge Finder Metric Z Type Edge Finder |
