Drive Pin Punch – 4 Inch Long
Esp
Batadores Cilindricos
Fr
chasse-goupilles
De
splinttreiber

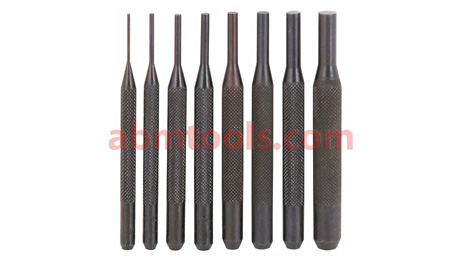

• Metal pins and similar connectors are driven in or out of holes using a pin punch
• For removal, first use a starter punch to loosen the pin, then using pin punches to finish.
• Drive Pin Punches are made from Tool Steel.
• Hardened and Tempered.
• 4” long with knurled body for an easy grip and are in black oxidized finish.
• Available in individual sizes and also in set of 4 & 8 in attractive plastic pouches.
| Item Code No. | Tip Dia. Inch | Tip Dia. mm |
|---|---|---|
| ABM-PN-9775 | 1/16″ | 1.6 |
| ABM-PN-9776 | 3/32″ | 2.4 |
| ABM-PN-9777 | 1/8″ | 3.2 |
| ABM-PN-9778 | 5/32″ | 4.0 |
| ABM-PN-9779 | 3/16″ | 4.8 |
| ABM-PN-9780 | 7/32″ | 5.5 |
| ABM-PN-9781 | 1/4″ | 6.3 |
| ABM-PN-9782 | 5/16″ | 8.0 |

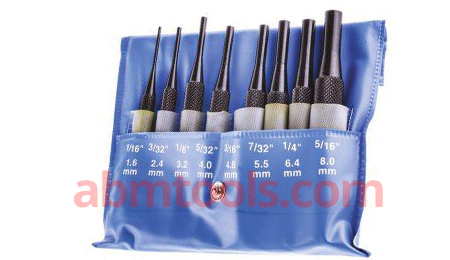

| ABM-PN-9783 | Set of 4 Drive Pin Punches in a Pouch consisting of 1/16”, 3/32”, 1/8” & 5/32” |
|
| ABM-PN-9784 | Set of 4 Drive Pin Punches in a Pouch consisting of 3/16”, 7/32”, 1/4” & 5/16” |
|
| ABM-PN-9785 | Set of 8 Drive Pin Punches in a Pouch consisting of 1/16”, 3/32”, 1/8” , 5/32”, 3/16”, 7/32”, 1/4” & 5/16” |
|
