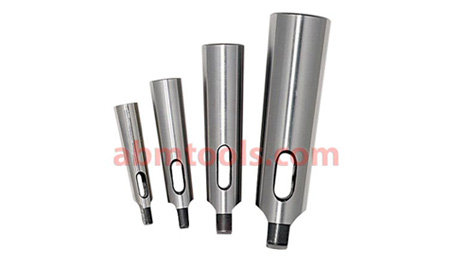

Drill Sleeves are used to adapt smaller morse taper shank tools to larger machine spindles. The cocentricity and taper angles are precisely controlled which allows perfect locking and concentric movement to the tool held. These are available in two types: A Grade – (Hardened and Ground) & Workshop Grade

Loading...

Description

• Available in both Soft and Hard type.
• Available in Workshop Grade & A Grade.
• A Grade ACC ISO 238 / DIN 2185 Made of Carbon Steel
• Hardened  and Ground Internally and Externally.
• Workshop Grade made from Carbon Steel, External Ground and  Internal Reamed Carbon Steel.
• Designed for use with Taper Shank Tools, providing accurate  alignment between the two members.
• Adapts smaller Morse Taper Shanks tool to larger machine spindles .
• Also known as reduction sleeves.
• While Placing Order Please Mention Workshop Grade or A Grade



Soft Type Workshop Grade
Item Code No.
Hardened Type A Grade
Item Code No.
Morse Taper
Inside
Morse Taper
Outside
Overall Length
mm
ABM-IMT-4020ABM-IMT-40401292
ABM-IMT-4021ABM-IMT-40411299
ABM-IMT-4022ABM-IMT-404222112
ABM-IMT-4023ABM-IMT-404314124
ABM-IMT-4024ABM-IMT-404424124
ABM-IMT-4025ABM-IMT-404534140
ABM-IMT-4026ABM-IMT-404615156
ABM-IMT-4027ABM-IMT-404725156
ABM-IMT-4028ABM-IMT-404835156
ABM-IMT-4029ABM-IMT-404945171
ABM-IMT-4030ABM-IMT-405026218
ABM-IMT-4031ABM-IMT-405136218
ABM-IMT-4032ABM-IMT-405246218
ABM-IMT-4033ABM-IMT-405356218



Soft Type Workshop Grade
Item Code No.
Hardened Type A Grade
Item Code No.
Sets
ABM-IMT-4034ABM-IMT-40544 Pcs. Set consisting Popular sizes 1-2, 2-3, 3-4, 4-5
