Description

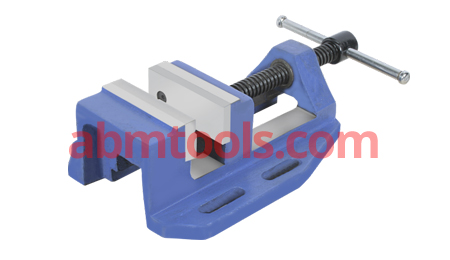

- Drill Press Vices body is made from close grain cast lron.
- Special steel ground jaws are provided with “V” groove for holding round jobs.
- Lead screw is made of special steel.
- Four “T” slots are provided on the both sides for rigid grip on drilling machine.
| Item Code No. | ABM-VC-10960 | ABM-VC-10961 | ABM-VC-10962 |
|---|---|---|---|
| Size Inches | 3" | 4" | 6" |
| Width of Jaws mm | 80 | 100 | 150 |
| Opening of Jaws mm | 45 | 60 | 60 |
| Depth of Jaws mm | 75 | 115 | 155 |
| Height Overall mm | 70 | 85 | 100 |
| Length overall mm | 230 | 275 | 155 |
| Width Overall mm | 145 | 185 | 245 |
| Slot Size mm | 10 | 13 | 13 |
| Weight Approx Kg. | 4.5 Kg. | 8 Kg. | 15.5 Kg. |
