Description
En
Esp
Fr
De
En

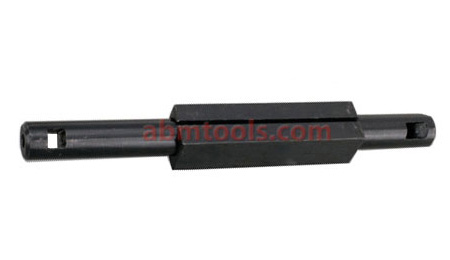

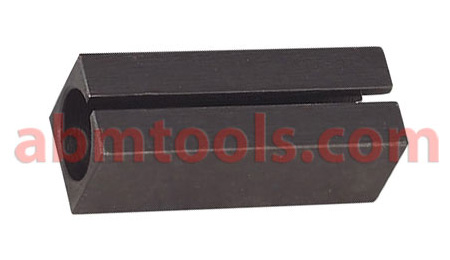

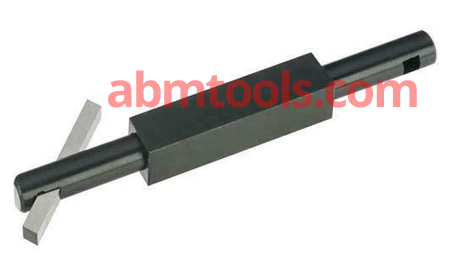

Double ended Boring Bar with Holder
Esp
Porta Buril de interiores
Fr
Barres D´ Alésage
De
Bohren stabe
• Double Ended one piece boring bars have 90° & 45° square ends.
• Set Supplied with Boring Bar, Holder, Allen Key and Screw.
• Tool Bits also available on extra cost.
• Shiny black finish.

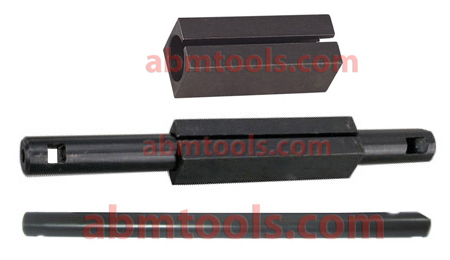

• Available with and without Holders.
• Only Holder and only Boring Bar also available separately.
• Single Ended Boring Bars also available.
| Item Code No. Set | Bar Size Dia. | Bar Size Length | Holder Size Length | Holder Size Square | Square Bit Size |
|---|---|---|---|---|---|
| ABM-IMT-6100 | 3/8” | 4-1/2” | 2-1/8” | 1/2” | 1/8” |
| ABM-IMT-6101 | 7/16” | 5-1/4” | 2-1/2” | 5/8” | 3/16” |
| ABM-IMT-6102 | 9/16” | 6-3/4” | 3” | 3/4” | 1/4” |
| ABM-IMT-6103 | 3/4” | 9” | 3-3/4” | 1” | 5/16” |
| ABM-IMT-6104 | 7/8” | 11-1/2” | 4-1/2” | 1-1/8” | 3/8” |
| ABM-IMT-6105 | 1-1/8” | 14” | 5” | 1-3/8” | 7/16” |
| ABM-IMT-6106 | 1-1/4” | 15” | 5-1/4” | 1-5/8” | 1/2” |
| ABM-IMT-6107 | 1-3/8” | 16” | 6” | 1-3/4” | 5/8” |
| ABM-IMT-6108 | 1-1/2” | 18” | 6” | 2” | 3/4” |
| ABM-IMT-6109 | 2” | 20” | 7” | 3” | 1” |
