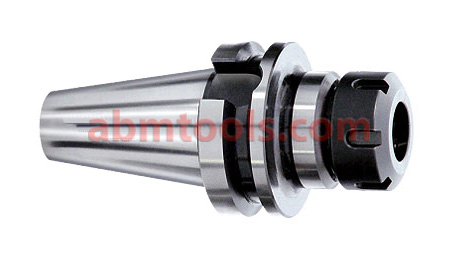

Description
• Form A & AD is without Coolant holes through flanges.
• Form B is with Coolant holes through flanges.
Dimension in mm
| Form A & AD Item Code No. | Form B Item Code No. | Type | D | D1 | L | L1 | L2 | G | G1 |
|---|---|---|---|---|---|---|---|---|---|
| ABM-IMT-6800 | -- | BT 30 / ER 16 x 080 | 28 | 28 | 80 | 69.5 | 51.5 | M 12 | M 12 |
| ABM-IMT-6801 | - | BT 30 / ER 16 x 100 | 28 | 28 | 100 | 89.5 | 71.5 | M 12 | M 12 |
| ABM-IMT-6802 | - | BT 30 / ER 25 x 060 | 42 | 46 | 60 | 48.5 | 28.4 | M 12 | M 12 |
| ABM-IMT-6803 | - | BT 30 / ER 25 x 100 | 42 | 46 | 100 | 88.4 | 68.40 | M 12 | M 12 |
| ABM-IMT-6804 | - | BT 30 / ER 32 x 060 | 50 | 40 | 60 | 47.3 | -- | M 12 | M 12 |
| ABM-IMT-6805 | - | BT 30 / ER 32 x 100 | 50 | 46 | 100 | 87.3 | 62 | M 12 | M 12 |
| ABM-IMT-6806 | ABM-IMT-6835 | BT 40 / ER 16 x 070 | 28 | 28 | 70 | 59.5 | 41.5 | M 16 | M 12 |
| ABM-IMT-6807 | ABM-IMT-6836 | BT 40 / ER 16 x 100 | 28 | 28 | 100 | 89.5 | 71.5 | M 16 | M 12 |
| ABM-IMT-6808 | ABM-IMT-6837 | BT 40 / ER 16 x 150 | 28 | 28 | 150 | 139.5 | 121.5 | M 16 | M 12 |
| ABM-IMT-6809 | ABM-IMT-6838 | BT 40 / ER 25 x 70 | 42 | 42 | 70 | 58 | 38 | M 16 | M 12 |
| ABM-IMT-6810 | ABM-IMT-6839 | BT 40 / ER 25 x 100 | 42 | 42 | 100 | 88 | 68 | M 16 | M 12 |
| ABM-IMT-6811 | ABM-IMT-6840 | BT 40 / ER 25 x 150 | 42 | 42 | 150 | 138 | 118 | M 16 | M 12 |
| ABM-IMT-6812 | ABM-IMT-6841 | BT 40 / ER 32 x 150 | 50 | 63 | 70 | 57 | 35 | M 16 | M 12 |
| ABM-IMT-6813 | ABM-IMT-6842 | BT 40 / ER 32 x 150 | 50 | 50 | 100 | 87 | 65 | M 16 | M 12 |
| ABM-IMT-6814 | ABM-IMT-6843 | BT 40 / ER 32 x 150 | 50 | 50 | 150 | 137 | 115 | M 16 | M 12 |
| ABM-IMT-6815 | ABM-IMT-6844 | BT 40 / ER 40 x 150 | 63 | 63 | 80 | 65.5 | 43.5 | M 16 | M 12 |
| ABM-IMT-6816 | ABM-IMT-6845 | BT 40 / ER 40 x 150 | 63 | 63 | 100 | 85.5 | 63.5 | M 16 | M 12 |
| ABM-IMT-6817 | ABM-IMT-6846 | BT 40 / ER 40 x 150 | 63 | 50 | 150 | 135.5 | -- | M 16 | M 12 |
| ABM-IMT-6818 | ABM-IMT-6847 | BT 50 / ER 16 x 100 | 28 | 28 | 100 | 89.5 | 71.5 | M 24 | M 12 |
| ABM-IMT-6819 | ABM-IMT-6848 | BT 50 / ER 16 x 150 | 28 | 28 | 150 | 139.5 | 121.5 | M 24 | M 12 |
| ABM-IMT-6820 | ABM-IMT-6849 | BT 50 / ER 32 x 100 | 50 | 50 | 100 | 87.5 | 65.5 | M 24 | M 12 |
| ABM-IMT-6821 | ABM-IMT-6850 | BT 50 / ER 32 x 160 | 50 | 50 | 160 | 147.5 | 125.5 | M 24 | M 12 |
| ABM-IMT-6822 | ABM-IMT-6851 | BT 50 / ER 40 x 100 | 63 | 63 | 100 | 85.5 | 63.5 | M 24 | M 12 |
| ABM-IMT-6823 | ABM-IMT-6852 | BT 50 / ER 40 x 160 | 63 | 50 | 160 | 147.5 | -- | M 24 | M 12 |
| ABM-IMT-6824 | ABM-IMT-6853 | BT 50 / ER 50 x 100 | 78 | 64 | 100 | 79.5 | -- | M 24 | M 12 |
