Description

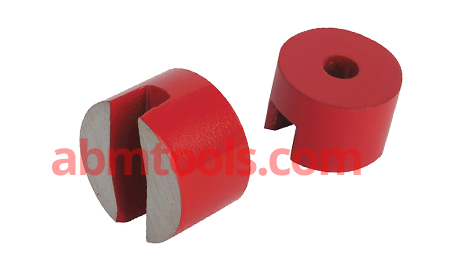

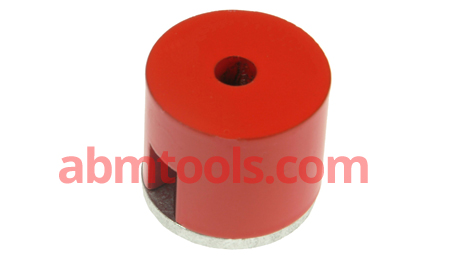

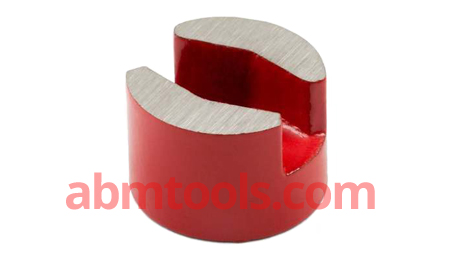

• Have both the poles at each end of the cylinder and are separated by a groove in the center.
• These magnets also have a plain fixing hole.
• Mainly used for gripping applications.
• Supplied with keeper.

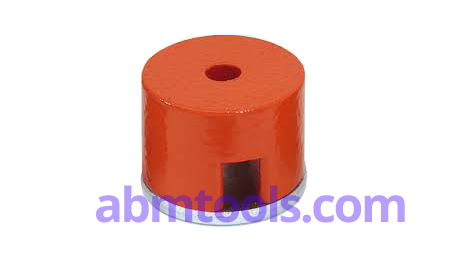

• Button Magnets are simply horseshoe magnets in a compact circular format.
• They are made from alnico to provide a high resistance to corrosion and a high temperature rating.
• All sizes have clearance holes for mounting.
• They must not be recessed into ferrous materials as it will short circuit the magnetism.
Item Code No. | Dia. Inch | Dia. mm | Height Inch | Height mm | Magnetic Pull Lbs. | Magnetic Pull Kgs. |
---|---|---|---|---|---|---|
ABM-IMT-8570 | 0.500" | 12.5 | 0.375" | 9.5 | 1.5 | 0.6 |
ABM-IMT-8571 | 0.750" | 19 | 0.500" | 12.5 | 4.2 | 1.9 |
ABM-IMT-8572 | 0.874" | 22 | 0.750" | 19 | 6.6 | 3.0 |
ABM-IMT-8573 | 1.000" | 25 | 0.625" | 16 | 7.5 | 3.4 |
ABM-IMT-8574 | 1.250" | 32 | 1" | 25 | 10.6 | 4.8 |
