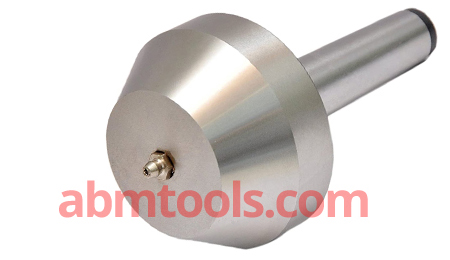

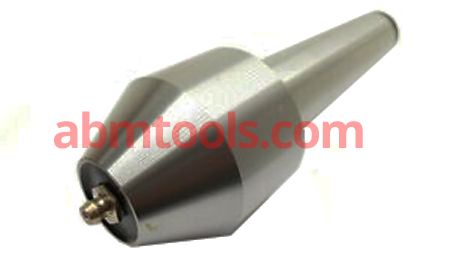

The tube pipe center fits tailstocks with Morse taper  spindles and two preloaded ball bearings provide smooth, easy rotation. The hardened and ground alloy steel construction provides extended durability and long performance life.

Loading...

Description

• Machining Pipes And Similar Hollow Shaft Materials With a High Thrust Capacity.
• Bevel Section Is Ground After assembly Running In Its Own Bearing.
• Designed to hold hollow & pipe Works.
• Manufactured from heat treated high carbon Alloy steel.
• Cone Angle – 60 degrees.



Item Code No.Morse Taper
Shank
Capacity
Min. Inch
Capacity
Min. mm
Capacity
Max. Inch
Capacity
Max. mm
ABM-IMT-8305MT23/4"193-5/32"80
ABM-IMT-8306MT21"263"75
ABM-IMT-8307MT21-1/2"382"50
ABM-IMT-8308MT325/32"203-47/64"95
ABM-IMT-8309MT31"262"50
ABM-IMT-8310MT31-1/2"383"75
ABM-IMT-8311MT31-3/8"344"100
ABM-IMT-8312MT41-3/16"295"125
ABM-IMT-8313MT41"262"50
ABM-IMT-8314MT41-1/2"383"75
ABM-IMT-8315MT42"513-1/2"88
ABM-IMT-8316MT42-1/2"644"100
ABM-IMT-8317MT43"766"150
ABM-IMT-8318MT51-17/64326"150
ABM-IMT-8319MT52"513-1/2"88
ABM-IMT-8320MT52-1/2"644"100
ABM-IMT-8321MT53"766"150
ABM-IMT-8322MT62-1/2"644"100
ABM-IMT-8323MT63"766"150
ABM-IMT-8324MT64"1028"200

Categories

MADE TO ORDER

CUSTOM DESIGN TOOLS
CUSTOMER’S BRANDING
DESIRED PACKING
GLOBAL SPEEDY DELIVERY

RELATED PRODUCTS

dead center lathe center half

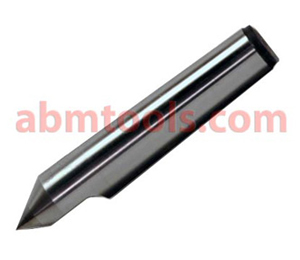

Half Dead Center – Lathe Centre
Another good use of a dead center in the tailstock is...
dead center lathe centre
Dead Center – Lathe Center – DIN 806
A lathe center, often shortened to center, is a tool that...
bull nose live centers

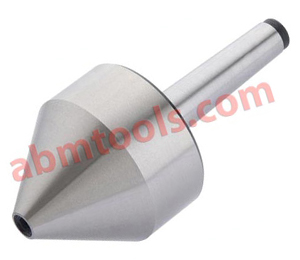

Bull Nose Live Centers
The bullnose fits tailstocks with Morse taper  spindles and two preloaded...
multi point live centre precision

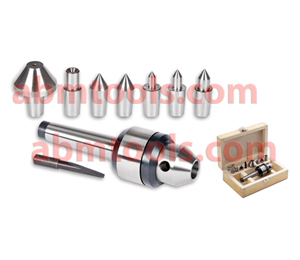

Multipoint Live Centre – Precision
