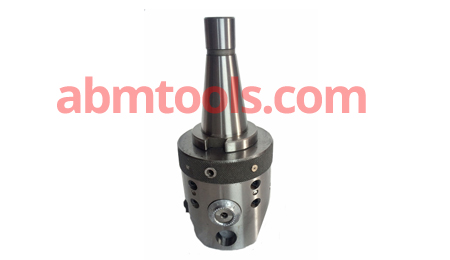

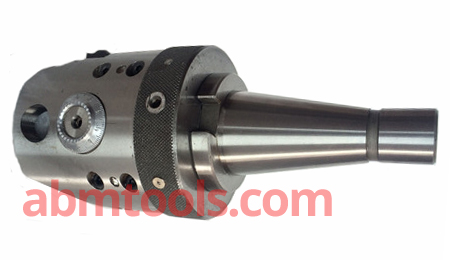

Automatic Boring and Facing Head designed with simplicity of construction and operation in mind

Loading...

Description

•  Automatic Boring and Facing Head designed with simplicity of construction and operation in mind.
•  This Boring head is very rigid in construction, with very little backlash in the tool carrier due to extra large slide ways.
•  Has a boring capacity of 250 mm.
•  Takes 12 mm boring tool sizes.

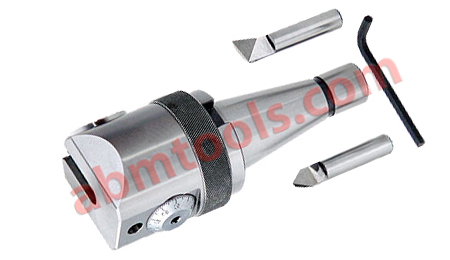

The complete set consists of the following
•  Boring Head dia  68 mm.
•  ISO 40 Shank.
•  2 Pc 12 mm Carbide Brazed Tools.

Item Code No.Boring Head
Diameter
Overall
Length
Cross Hole
Size
Centre Distance
between Hole
OffsetShanksMin
Bore
Max
Bore
Mounted
Thread
ABM-IMT-49006812121225R8 or ISO 401222524 x 2
