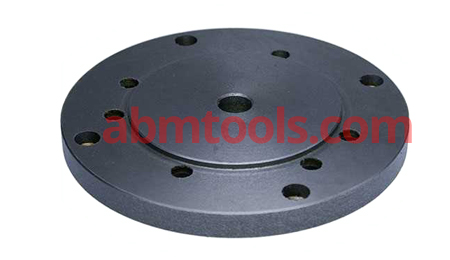

Back plates with T Nuts
• Excellent quality back plates to mount chucks on the Rotary tables.
• Manufactured from Aluminium.
• Drilled in a manner that they fit both a 3 as well as 4 slot tables.
• In case of MT taper bore Rotary tables, the back plates are provided with an extension to fit to the centre bore so that the centre of the Table and back plate remains absolute co-centric.
• Precision Turned Backplates which allow Chuck to sit Precisely.
| Item Code No. | Plate Size | Plate Size | Suitable for following Models Rotary Tables | Suitable for following Models Rotary Tables |
|---|---|---|---|---|
| ABM-VC-2219 | 100 mm | 4" | Suitable for 100 mm / 4" Rotary Tables | Suitable for ABM-VC-2590 ABM-VC-2620 ABM-VC-2580 Rotary Tables |
| ABM-VC-2220 | 150 mm | 6" | Suitable for 150 mm / 6" Rotary Tables | Suitable for ABM-VC-2660 ABM-VC-2670 ABM-VC-2690 Rotary Tables |
