Description

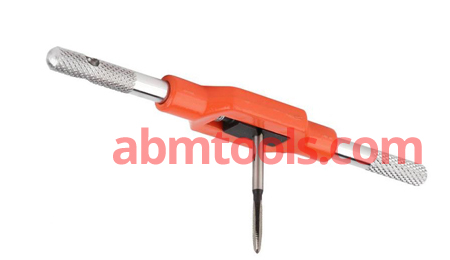

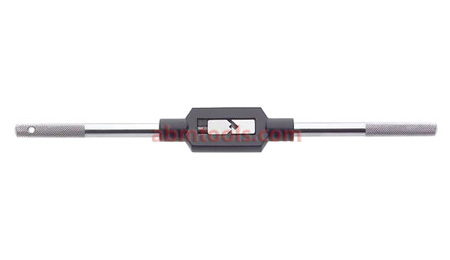

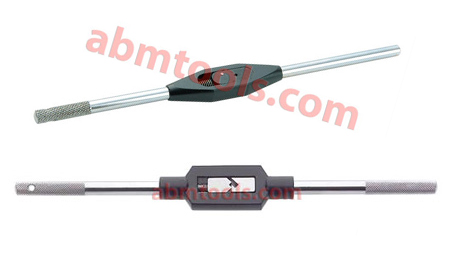

Adjustable Tap & Reamer Wenches / Handles
Giramachos ajustables
Tourne – à – gauche
Verstellbare Windeisen
• Double-end adjustable tap wrenches , also known as bar wrenches, have one threaded handle which is attached to one of the clamps.
• The clamp opened to insert the tool and then tightened down against the tool to secure it.
• This type of tap wrenches, used with larger taps and where there is room for a larger wrench.
• Hardened and tempered jaws.
• General tool for handy tapping.
• High Quality Tool for Hand Tapping Operation.
• Available in Zinc Casting Body, Drop Forged and MS casting Body.
• Small Sizes upto 1-1/8″ available in Drop Forged Steel body and Large Size in Casting Body.
• Also Available in color Body and with Insulation Sleeves.
| Item Code No. Zinc Die Casting | Item Code No. MS / Drop Forged | Tap Capacity Inch | Tap Capacity mm | Total Length Inch | Total Length mm |
|---|---|---|---|---|---|
| ABM-IMT-6010 | ABM-IMT-6015 | 1/16” to 1/4” | 1.5 to 6 | 7” | 175 |
| ABM-IMT-6011 | ABM-IMT-6016 | 1/16” to 3/8” | 1.5 to 10 | 9” | 225 |
| ABM-IMT-6012 | ABM-IMT-6017 | 5/32” to 1/2” | 4 to 12 | 11” | 275 |
| ABM-IMT-6013 | ABM-IMT-6018 | 5/32” to 3/4” | 4 to 18 | 15” | 375 |
| — | ABM-IMT-6019 | 1/4” to 1-1/8” | 6 to 27 | 19” | 475 |
| — | ABM-IMT-6020 | 3/4” to 1-1/2” | 18 to 35 | 40” | 1000 |
| — | ABM-IMT-6021 | 1” to 2-1/2” | 25 to 60 | 54” | 1350 |
| Item Code No. | Sets |
|---|---|
| ABM-IMT-6014 | 3 Pc Die Cast Body Set Consisting ABM-IMT-6010 to ABM-IMT-6012 |
